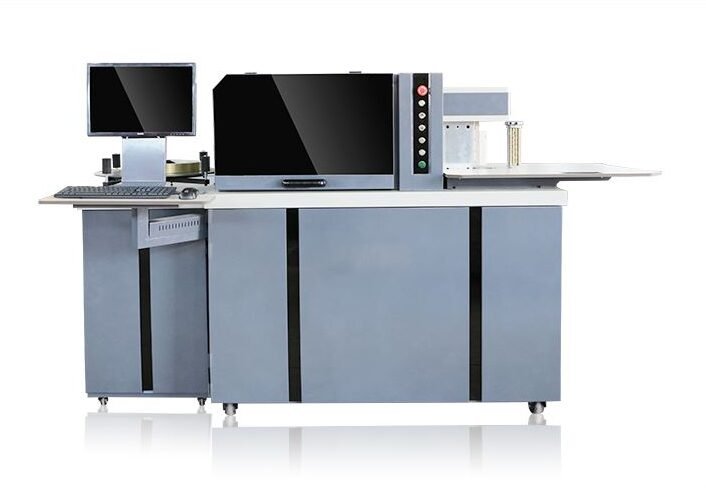

AL160 Bending Machine
The AL160 Bending Machine is a versatile and efficient solution for precision metal bending. Designed to handle materials like aluminum profiles, flat aluminum, stainless steel, iron, and channelume, it supports slot angles from 45° to 135°, with no restrictions for flat materials.
With adjustable material widths of up to 200mm and a bending radius of ≥3.5mm, it ensures accurate and consistent results. The machine operates at 2000W power, featuring a robust design with dimensions of 1900mm × 900mm × 1600mm and weighing 630KG. It runs on 220V and requires air pressure between 0.3–0.8MPa, making it ideal for industrial and workshop applications.
Functions
Bends various materials: aluminum profiles, flat aluminum, stainless steel, iron, channelume.
Supports slot angles from 45° to 135° (no limit for flat materials).
Handles material widths up to 200mm.
Maintains a bending radius of ≥3.5mm for precise curves.
Processes material thickness from 0.3mm to 1.6mm.
Adjustable bending speed and angle for different applications.
Operates with 2000W total power for efficient performance.
Easy-to-use control system for accuracy and repeatability.
Compact and durable design suitable for workshops.
Works with standard 220V voltage and 0.3–0.8MPa air pressure.
Specifications
| Feature | Details |
|---|---|
| Slot Degree | 45°–135° (No limit for flat materials) |
| Material Width | ≤160mm / ≤180mm / ≤200mm |
| Bending Radius | ≥3.5mm |
| Material Thickness | 0.3–1.6mm |
| Total Power | 2000W |
| Machine Size | 1900mm × 900mm × 1600mm |
| Weight | 630KG |
| Air Pressure | 0.3–0.8MPa |
