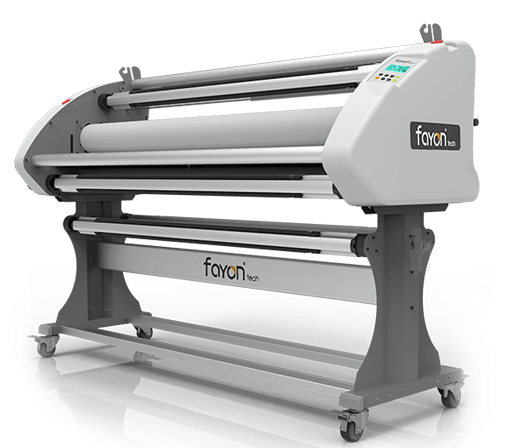

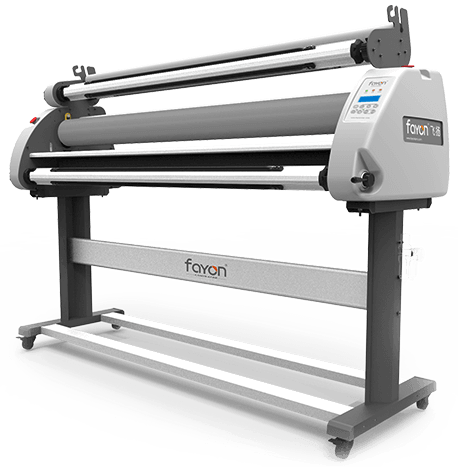

Auto High-Speed Cold/Hot Laminator FAYON 1600SE

Automatic Hot/cold laminator FY-1600SE is a professional equipment in the printing and post-processing, cater to your varying needs, widely used in the advertising, exhibition organizers, picture production, studio and many other fields, become the most ideal corollary.

FY 1600 SE is a Professional, sturdy and robust laminator designed to guarantee every day high quality results with great
speed (on demand up to 25 m/min).The laminator features a Heated upper roller with preset electronic temperature regulation, up to 125 C. High Performance Laminator suitable for Industrial Applications. It allows for Laminating, Mounting and Encapsulating Prints, applying Application Tape and Double Sided Adhesive. Compatible with all Cold Laminating Films in the Marke

Functions

Self-adaptive coated thickness, adjustable laminating pressure，fit for laminate rolling media and flat surface board.
Simple operation, wide suitability, dependable safety, multiple functions.
Professional sturdy and robust laminator designed to guarantee every day high quality results with great speed (on demand up to 25 m/min)
64’’ ALUMINUM SHAFTS (total 4 shafts) for easy loading and unloading of the rolls
It can support big and heavy rolls with diameter up to 200 mm (8 in.) thanks to the increased distance between rollers and support shafts
Heated upper roller with preset electronic temperature regulation – standard on FAYON 1600 model  (Room- 125°C) (room – 257°F)

Specifications

Max laminating width	1620mm
Max lamination thickness	35mm
Max speed	25m/min
Max temp	room~125℃
Roller upgrade	Air cylinder
Roller	Silicon
Heating	Infrared
Preheating	10-15min
Power input	0.8-1.0kw/h
Volt	110/220v
N.W.	280kgs
