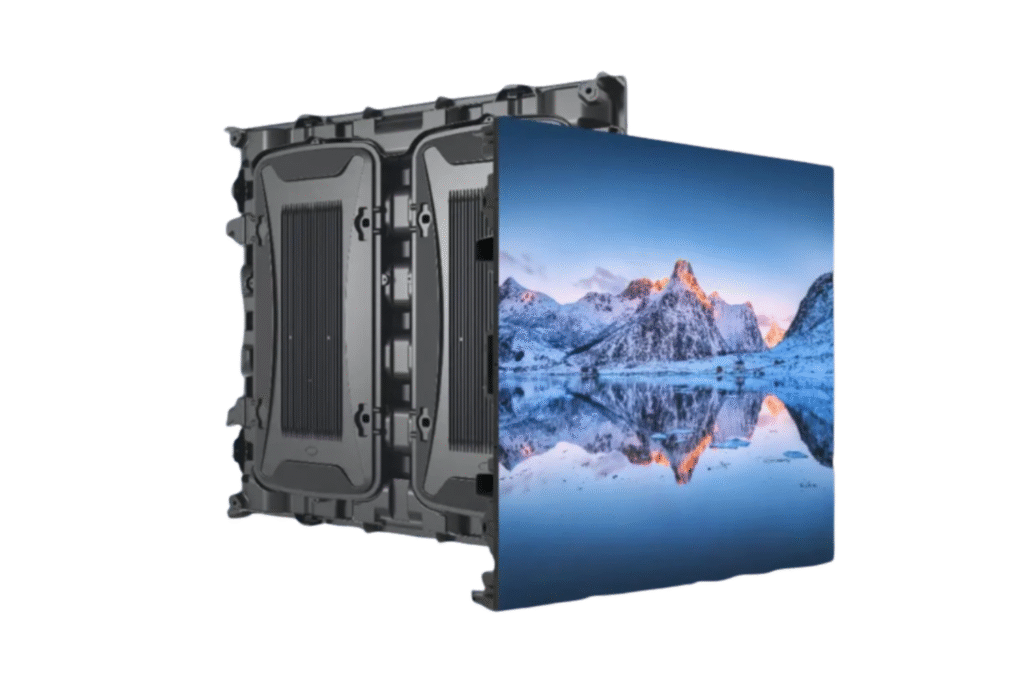

BNX Series

High definition images, dynamic animation effects, support multiple broadcast format, widely application for retail shops, chain stores, TV studios, Cinemas, Airports, Museums.

Multi-Cabinet sizes

500x250x48MM
750x250x48MM
1000x250x48MM
500×500 x48MM
500×1000 x48MM

Functions

  • HUB cards and PSU can be taken down and maintained quickly.
  • Module: front magnetic maintenance + front vacuum maintenance
  • Front Maintenance: PSU + HUB card + Receiving card
  • Modules can be rotated and spliced;
  • The width can be matched at will; Can spell any size screen.
  • Cabinets can be mixed combined.
  • Cabinets can be combined freely to cut-corner and corner (-90º~0º) screen horizontally.
  • Cabinets can be combined malposed.
  • High-end magnificent in appearance, concise and beautiful.

Specifications

Pixel ConfigurationSMD1010
Pixel Pitch mm1.5
Pixel matrix per panel320/480×160
Pixel densitypixels/sq.m.409600
Cabinet Dimensions (WxHxD)/mm500/750X250x48
Module Dimensions (WxH)/mm250×250
Panel materialDie Casting Aluminum
