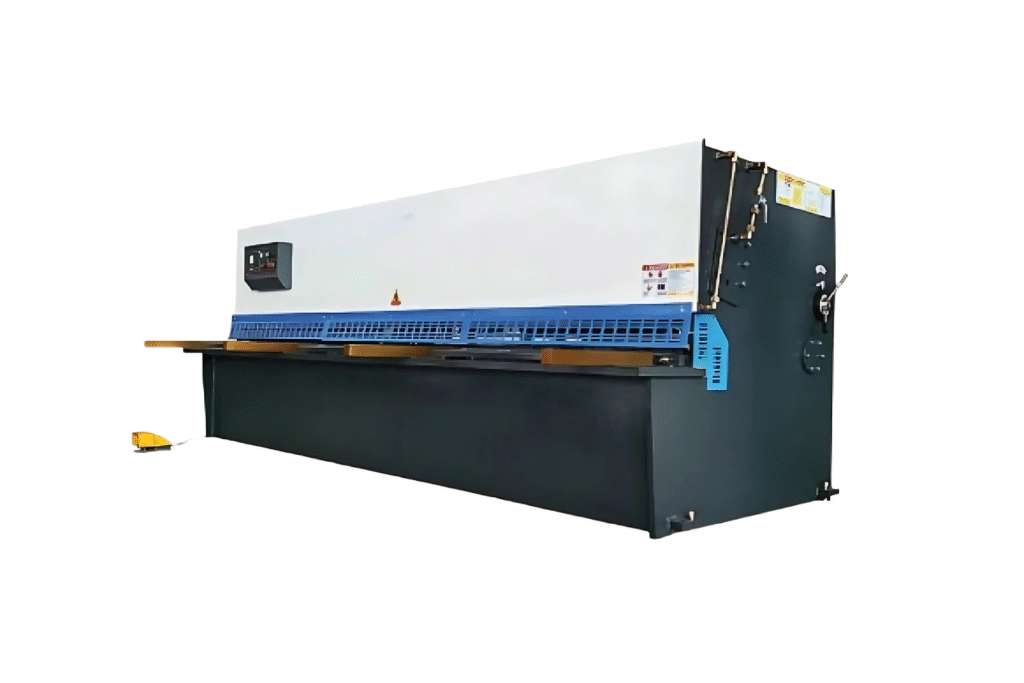

CNC Swing Beam Shearing Machine
- LCD interactive interface display is more humanized.
- Debugging free function, only need to count twice.
- Frequency conversion positioning, PID algorithm, one step in place.
- 9 products can be programmed, and 9 work steps can be entered for each product.
- One click restore factory settings, no longer afraid of beginners to adjust parameters.
- Sequential counting effect, counting is more humanized.
ESTUN E21S Control System
- Monochrome LCD Box Panel.
- Integral factor programmable freely
- Automatic positioning control
- Spindle allowance offset
- Internal time relay
- Stock counter
- Backgauge position display, resolution in 0.05mm
- High Definition LCD screen, one page displaying programming parameters
- X, Y axis positioning, also can be adjusted manually as required
Specifications
| Specification | Detail |
| Cutting Capacity | 6 mm thickness, 3200 mm length |
| Cutting Angle | ~1.5° |
| Material Strength | ≤ 450 N/mm² (mild steel) |
| Stroke Rate | ~12 strokes/minute |
| Backgauge Travel | 20–600 mm |
| Power & Dimensions | Motor 7.5 kW, Size ~3730 × 1665 × 1620 mm |
| Control & Adjustment | CNC controller (E21S or similar), Manual/Motor-assisted blade clearance |
| Frame Construction | Rigid welded steel, designed with ANSYS |
