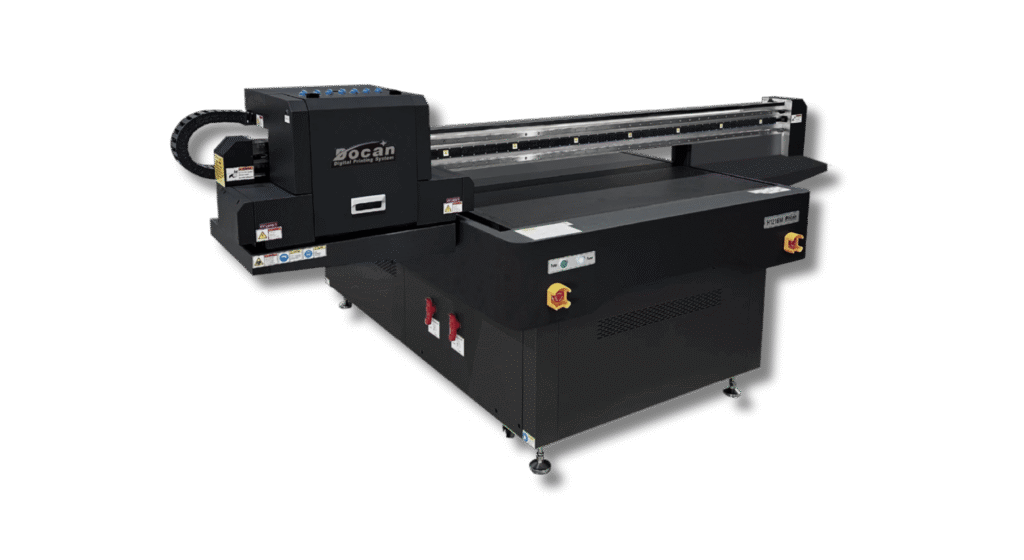

Docan H1216 Printer

The H1216 UV flatbed printer features variable drop size technology and high-elevation printing capabilities. With vision-guided printing, it ensures precise positioning during production, significantly improving efficiency for batch processing.

With a compact 1.2*1.6m printing size, this model offers versatile printing capabilities, stable performance, and simultaneous color-white-varnish printing for high-resolution, detailed results.1.2*1.6m hard-anodized vacuum platen, compatible with most flat substrates on the market.Printhead Configuration up to 3 rows of Ricoh printheads

Functions

High-efficiency automation with full auto-detection to boost productivity
User-friendly software interface for easy operation and time savings
Wide compatibility for industries like advertising, construction materials, and crafts
Compact printhead enables white/color/gloss synchronous printing with flexible options
Lightweight UV flatbed printer with minimal space requirements for multi-scenario use
Japanese THK linear guides: High precision, low noise, wear-resistant, and durable
Linear motor-driven carriage ensures high-precision, stable motion for continuous operation

Functions & Specifications

Curing Method	UV LED
File Formats	TIFF, JPEG, EPS, PDF
RIP Software	SAI/ONYX/Caldera
Power Requirements	AC220V 50/60Hz 10kW 45A
Environment	Temperature: 20°C~28°C Humidity: 40%~60%
Ink Tank Capacity	2L
Dimensions	3000mm × 2300mm × 1350mm
Weight	720kg
