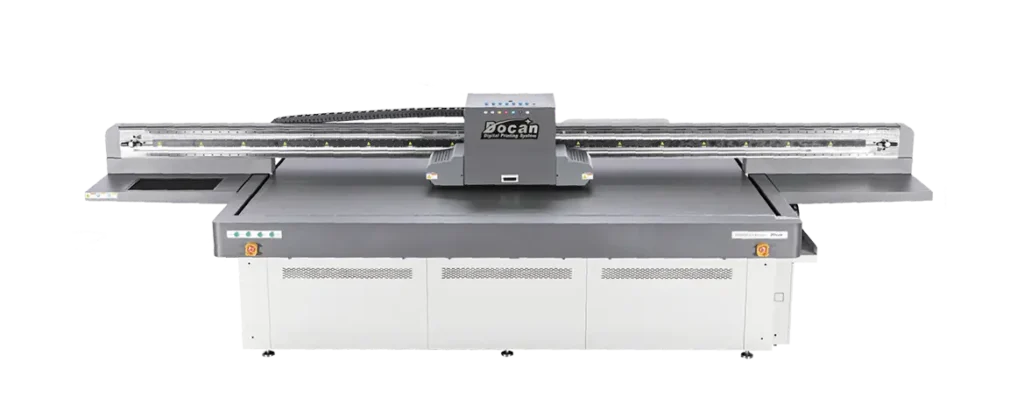

Docan H3000 Printer
3.2m printing format with high precision, stability, productivity, multi-material compatibility and energy efficiency for industrial production needs.
The H3000 features a fully welded frame for durability. Its modular design allows flexible configuration for diverse production needs.3.2*2m hard-anodized vacuum platen, compatible with most flat substrates on the market.
Functions
- Steel frame minimizes vibration for ultra-stable precision
- Supports larger/heavier media with extended durability
- Superior rigidity and deformation resistance for industrial applications
- H3000M (Standard) supports up to 4 rows of Ricoh printheads, upgradeable to H3000MT (max 3 rows of Kyocera printheads) for ultra-fast printing
- H3000M supports 3.2*2m prints; Upgradeable to H3000LM (3.2*2.5m) or H3240 (3.2*4m) for oversized materials
- Dual metal gratings for higher precision position feedback with real-time dynamic compensation, ensuring consistent positioning throughout printing
Specifications
| Functions | Specifications |
|---|---|
| Curing Method | UV LED |
| File Formats | TIFF, JPEG, EPS, PDF |
| RIP Software | SAI / ONYX / Caldera |
| Power Requirements | AC220V 50/60Hz 10kW 45A |
| Environment | Temperature: 20°C~28°C, Humidity: 40%~60% |
| Ink Tank Capacity | 2L |
| Dimensions | 5600mm × 3100mm × 1540mm |
| Weight | 2580kg |
