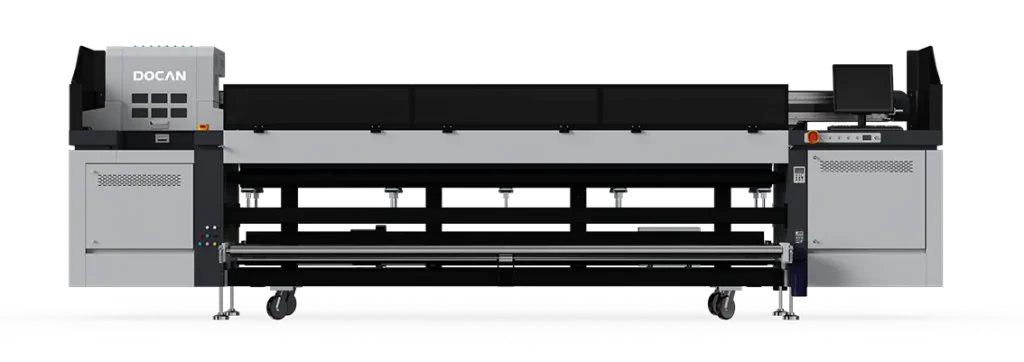

Docan R3200 Printer
Next-gen industrial roll-to-roll printer combining high precision, speed, and multi-material compatibility for limitless creative possibilities.
Specialized in premium roll-to-roll printing with 3-row Konica printhead configuration, achieving up to 95sqm/h high-speed UV printing! Printhead Configuration up to 3 rows of Konica printheads.
Functions
- 3.2m printing width with modular design and market-proven durable components
- Supports banners, flexible films, car wraps and other materials, reducing redundant equipment investment for customers
- Material flattening: Dual-roller system eliminates wrinkles for precise printing alignment
- Tension stability: Maintains consistent material tension to prevent slippage during continuous printing
- Print quality enhancement: Stabilizes nozzle-to-media distance for accurate ink droplet placement
- High-efficiency cooling supports continuous high-speed production demands
Specifications
| Specification | Details |
|---|---|
| Print Area | 3200mm |
| Print Height | Max 20mm |
| Resolution | Up to 726×2400dpi |
| Print Speed |
Konica 1024A (6PL): 4Pass 76–95㎡/h, 6Pass 55–63㎡/h, 8Pass 35–40㎡/h Ricoh G6 (5PL): 4Pass 50–58㎡/h, 6Pass 41–48㎡/h, 8Pass 27–32㎡/h Kyocera (3.5PL): 4Pass 30–38㎡/h, 6Pass 25–32㎡/h, 8Pass 20–25㎡/h |
| Print Head | Konica 1024A, Ricoh G6, Kyocera |
| Head Quantity | Konica: 4–18 pcs, Ricoh: 2–9 pcs, Kyocera: 2–7 pcs |
| Ink Colors | CMYK / LC / LM + W |
