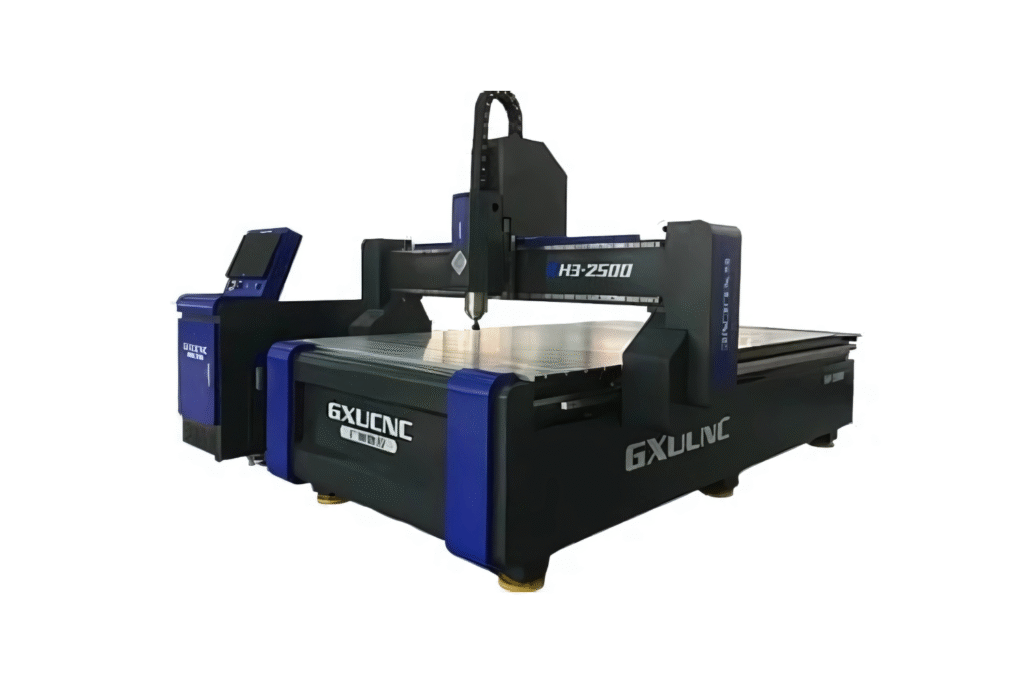

H3-2500 Series
The H3-2500 is a dependable, industrial-grade CNC router commonly manufactured in Zhejiang, China (notably by GXUCNC and similar brands). It’s designed for high accuracy, versatile use across industries (advertising, woodworking, signage), and long-term reliability.
Features
High Accuracy & Rigidity
With ±0.01 mm positioning accuracy and ±0.02 mm repeatability—plus robust, precision-engineered components like Hiwin rails and ball screws—this router can handle fine-detail work reliably.Flexible Table Options
Available with either a T-slot table or a vacuum-style table (air pump optional), facilitating secure clamping of materials of various shapes.Durable Construction & Transmission
Features a welded heavy-duty “H-style” bed for stability, with rack-and-pinion drive for X/Y and ball screw for Z, ensuring long-term smooth motion.
Specifications
| Specification | Details |
|---|---|
| Working Area | 1300 × 2500 mm |
| Repeat Position Accuracy | ±0.02 mm |
| Total Spindle Power | 3 kW |
| Drive Motor | Servo Motor |
| Running Speed | 10 m/min |
| Power Supply | AC 220V / 50Hz |
| Processing Accuracy | ±0.01 mm |
| N.W. | 800 Kg |
