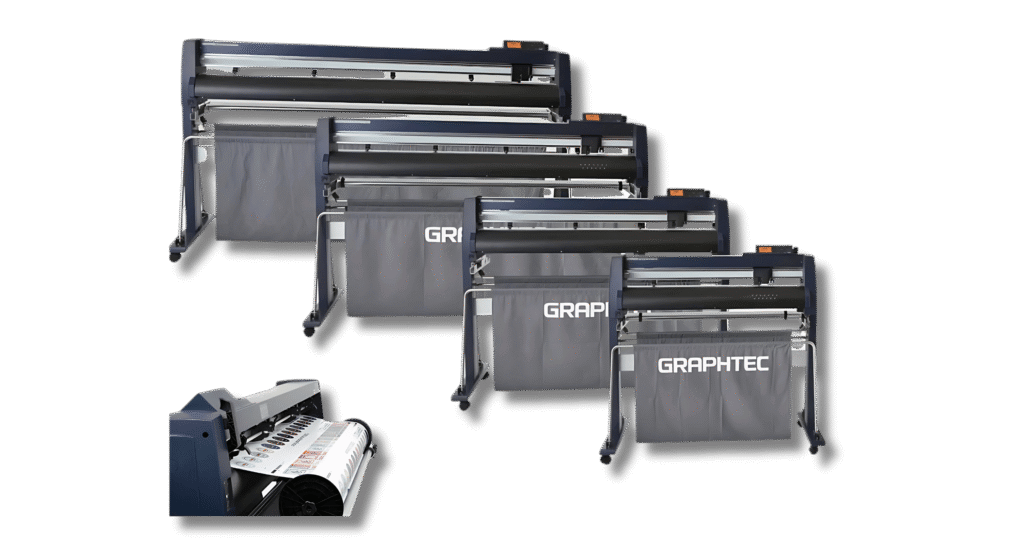

Plotter F9000 Series
FC9000 is highly recognized as a cutting plotter with its best quality of finishing solution for a wide range of industries, including wide-format signage, apparel, and automotive applications. Its rigidity and media feeding quality, tool carriage performance have been improved from the previous model to enable more precise cutting.
Our newly developed Advanced Registration Mark Sensing System (ARMS) is installed which will raise the productivity with its variety of functions.
Functions
- Data output via USB flash memory without PC
- When cutting data designed with Cutting Master 5 or Graphtec Studio 2 are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.
- Continuous Cut (Data Link function)
- Barcode data management allows cutting different data sequentially by detecting the “Start Mark” of the new Barcode. Sequential Print & Cut process with roll-media is now available.
- Reliable long-length tracking (Automatic Take-up Roller)
- It supports long-length, 15m (50ft) (Operated with Graphtec specified media and conditions.) and makes possible to cut large signs/pops with stable paper carriage and high accurate cutting quality. In addition, if Automatic Take-up Roller as option is equipped to plotter, it becomes possible to automatically wind media and improve your work efficiency.
Specifications
| Configuration | Model 1 | Model 2 | Model 3 | Model 4 |
|---|---|---|---|---|
| Cutter Type | Grit Rolling Type | |||
| Drive Method | Digital Servo Drive | |||
| Max. Cutting Area (W × L) | 762mm × 50m | 1067mm × 50m | 1372mm × 50m | 1626mm × 50m |
| Cutting Area of Guaranteed Accuracy | 742mm × 15m 1047mm × 10m |
762mm × 15m 1352mm × 10m |
894mm × 15m 1607mm × 10m |
894mm × 15m |
| Mountable Media Width | Min. 50mm Max. 920mm (36.2") |
Max. 1224mm (48.1") | Max. 1529mm (60.1") | Max. 1850mm (72.8") |
