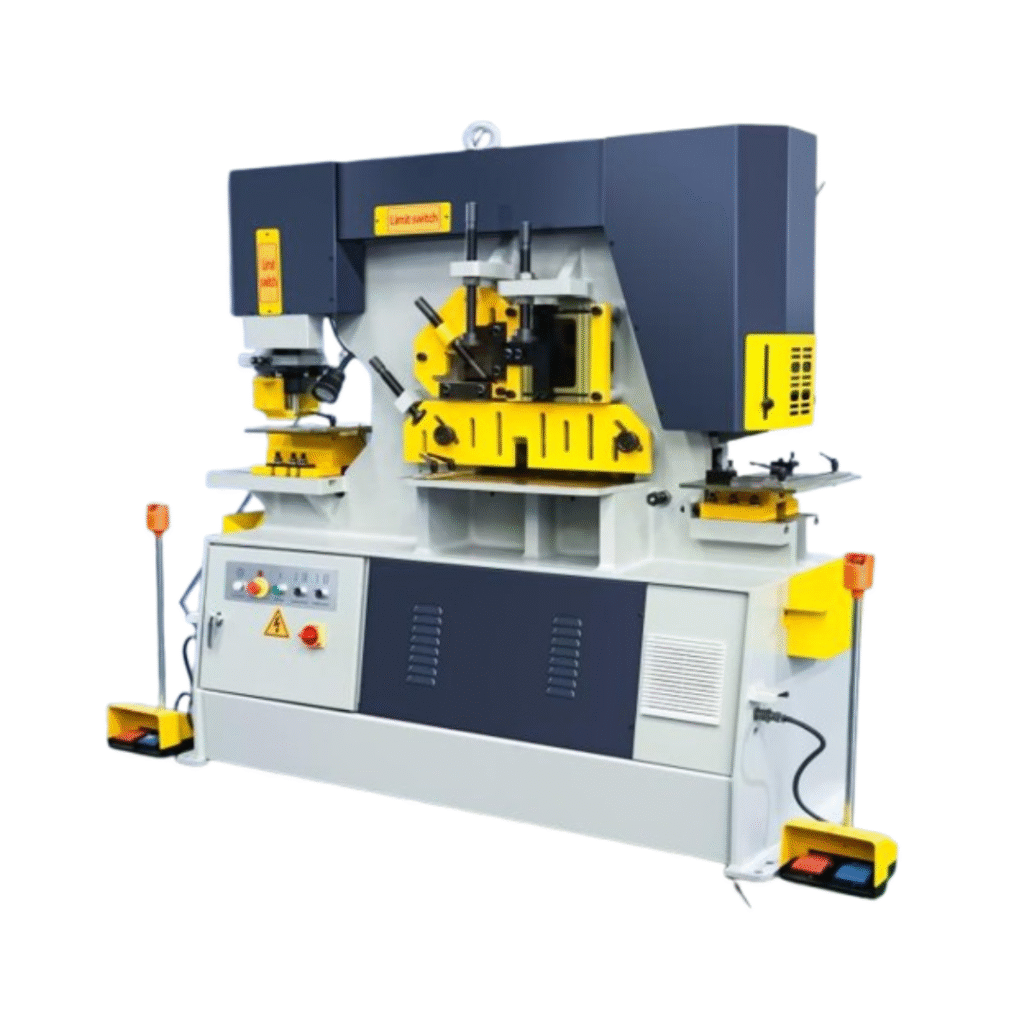

IW-90E Iron Worker
The E-series hydraulic ironworker is highly praised for its versatility, efficiency, precision, and ease of use. The rapid cylinder stroke significantly improves work efficiency. This machine has a high-cost performance ratio, superior performance, and reasonable price, achieving a perfect balance between performance and price, with significant economic benefits.
Functions
Performs precise punching, shearing, and notching operations on various metal plates and profiles.
Offers high punching pressure for effortless cutting of thick and tough materials.
Ensures efficient flat bar and angle cutting with smooth, accurate results.
Features a rapid cylinder stroke for faster production and improved productivity.
Provides multi-station versatility, allowing multiple tasks without tool change.
Built with a durable hydraulic system for consistent power, stability, and long service life.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | IW-90 |
| Punching Pressure | 90 Ton |
| Max. Cutting Thickness | 20 mm |
| Material Strength | ≤ 450 N/mm² |
| Max. Punching Diameter | 30 mm |
| Motor Power | 7.5 kW |
| Trips Frequency | 12–20 times/min |
| Overall Dimensions | L × W × H: 1950 × 900 × 1950 mm |
